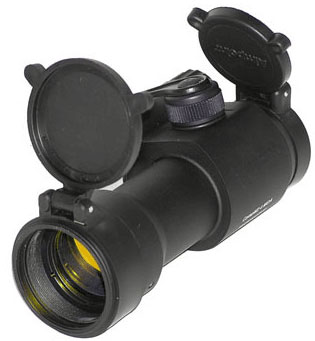

The successful CompM2 & CompML2 family of red dot sights and mounting systems
for small calibre firearms such as pistols submachine guns and assault rifles
have set a new standard for advanced sighting systems.
Specially modified variants of the CompC designed to meet military requirements;
these sights are used by many armies and Special Forces around the world.
This sight has a special hard-anodized surface and the specification for water
tightness is equivalent to a depth of 75 feet. The high quality requirements
are designed to cope with frequent professional use on those types of guns that
are typically used by the police and the military or for hunting under extreme
conditions.
The CompM2 is compatible with all 3 generations night vision devices (NVD)
but is otherwise identical in construction to the CompML2. There is no “off”
position necessary on the CompM2 as the battery life at the lowest setting is
more than years. Ten years is the life time of batteries.
| OPTICAL DATA |
| System |
Parallax Free, Reflex, Collimator System |
| Magnification |
No magnification (1X) |
| Eye relief |
Unlimited, No centering required |
| Reticle, size |
Red dot, diameter 4 MOA* |
| Optical coating |
Anti Reflex coating all surfaces. Multi-layer coating for reflection of red light. Band Pass coating for NVD compatibility |
| ELECTRONIC DATA |
| Battery Type |
One 3 Volt Lithium battery type 2L76 or DL1/3N |
| Battery Life, typical** |
CET technology, 1.000-10.000 hours average. Typically 10 years at NVD position |
| Switch, dot brightness |
10 positions, 4 NVD, 6 daylight, of which 1 Extra Bright |
| MECHANICAL DATA |
| Material housing |
Extruded high strength aluminium |
| Surface finish |
Hard anodized, matte, Graphite Gray |
| Material lens covers |
Thermoplastic Elastomer, black non-glare |
| Adjustment |
1 click = 10 mm at 80 meters = 13 mm at 100 meters = ½" at 100 yds |
| Mounting |
1 ring, 30 mm or Aimpoint QR |
| DIMENSIONS |
| Length |
130 mm (5.1") |
| Width/height |
55 mm (2.2") |
| Ring width |
Max 30 mm (1.2") |
| Weight |
200 grams (7.1 oz) |
| ENVIRONMENTAL DATA |
| Temperature Range |
-45ºC to +70ºC (-50ºF to +160ºF) |
| Water resistance |
Submersible to 25 m (80ft) water depth |
| *MOA (Minute Of Angle) 1 MOA = 30 mm at 100 meters = 1" at 100 yards.
** Depending on power setting.
Dimensions and weights for CompML2 and CompM2 are given with Flip-Up Lens Covers |
