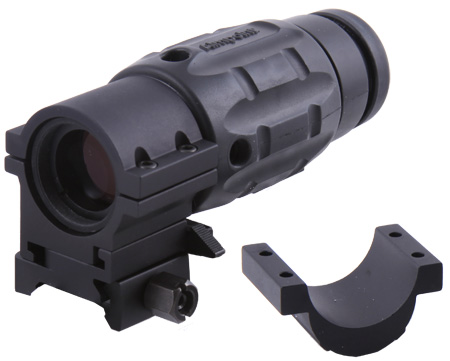

Aimpoint 3xMag with TwistMount and Spacer
AIMPOINT 3XMag Magnifying Module
The 3XMag magnifying module is specially designed for compatibility with Aimpoint® sights and for maximum flexibility and increased performance in the field. The 3XMag is a revolutionary tool for military personnel, law enforcement, sport shooters and hunters.
When combined with Aimpoint’s patented TwistMount, the 3XMag gives the user something never before possible – the ability to switch in a split second from CQB (Close Quarters Battle) to semi-sniping and vice versa. Hunters can rapidly switch from non-magnifying to magnifying while still being able to keep their Aimpoint® sight on their firearm. The versatile 3XMag also can be used as a handheld magnifying glass monocular for discrete observation and identification.
Includes:
- Aimpoint TwistMount Ring for the 3XMag is the Aimpoint Twist Mount, which allows for quick attachment and detachment. The Aimpoint TwistMount fits any MIL-Std 1913 Picatinny Rail.
- Aimpoint Mount Spacer fits QRP, QRW, & Twist Mount. Includes Allen key and extended hardware. Note: Spacer for Quick Release mount is necessary for M4 flat top rifles & carbines. Optical center over top of rail:
Unique Features:
- Mountable on a rail system behind Aimpoint® sights
- Extremely fast and ingenious mounting solution (Twist Mount - Picatinny)
- Can also be mounted with a regular 30 mm ring
- Provides extended range to the operator
- Combines the best of two worlds – CQB & semi-sniping
- Increases confidence, performance and flexibility
- No influence on point of impact –– No need for re-zeroing the sight
- Doubles as handheld magnifying monocular
TECHNICAL SPECIFICATIONS
OPTICAL DATA |
System |
Magnifying Module |
Magnification |
3X |
Eye relief |
at 5° FOV 40 90 mm at full FOV 60 65 mm |
Reticle, size |
- |
Optical coating |
- |
ELECTRONIC DATA |
Battery Type |
- |
Battery Life, typical** |
- |
Switch, dot brightness |
- |
MECHANICAL DATA |
Material housing |
- |
Surface finish |
Anodized aluminum, dark grey, rubber covered black |
Material lens covers |
- |
Adjustment |
- |
Mounting |
The 3XMag is provided with a 30 mm diameter tube (for mounting) and with 4 screw holes in the bottom surface for other mounting alternatives. |
DIMENSIONS |
Length |
110 mm (4.3") |
Width/height |
44x41 mm (1.7" x 1.6") |
Ring width |
30 mm |
Weight |
200 g (7,1 ounces) inc rubber cover |
ENVIRONMENTAL DATA |
Temperature Range |
-45° C - 70° C in operation and storage |
Water resistance |
20 meters (67 ft) |
|
|
|
|
