ACCESSORIES

Aimpoint CompM3

Quantity in Basket: None
Code: AIMPOINT_Comp_M3
Price: $562.00

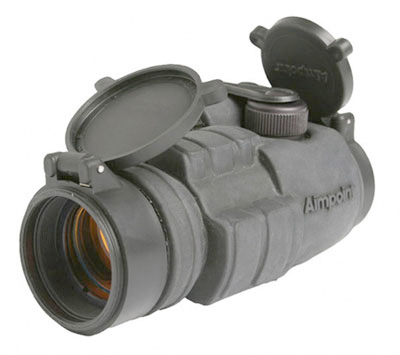

Aimpoint Comp M3 (NV Compatible)

When police and armed forces personnel are on duty, they need their equipment to handle just about any situation, anytime, anywhere. Thatā€™s why Aimpoint created the CompM3, a revolutionary sight that offers the highest standard available for sight systems technology.

Incorporating over 30 years of Aimpoint's internationally recognized design innovations; the CompM3 features our latest technology and is even more rugged than Aimpointā€™s other sights. Featuring our revolutionary Advanced Circuit Efficiency Technology (ACET) that gives the sight unparalleled battery life and ease of use, the CompM3 works with any generation of night vision device (NVD). Built primarily for armed forces and police use to hold up under the roughest physical handling and most severe weather conditions, the CompM3 is also ideal for hunters and sport shooters.

The CompM3 comes with a replaceable, outer black rubber cover, which protects it from scratching and adds an additional stealth factor. The outer cover is also available in Dark Earth Brown ā€" perfect camo for use in the desert and in the jungle.

Unique features for CompM3

Compatible with every generation of NVD
New technology called ACET allows 50,000 hours of operation on one single battery (on setting 7 out of 10)
500,000 hours of use on NVD setting
Unequalled light transmission
Available in 2 dot sizes (2 and 4 MOA)
Submersible to 45 meters (135 feet)
Comes with replaceable outer black rubber cover Outer rubber cover available in Dark Earth Brown

Standard features for all Aimpoint sights

Unlimited field of view
Parallax-free with unlimited eye relief
Unaffected by extreme weather conditions
Rugged, durable construction
No hazardous materials used
No laser emission that could be harmful to your eyes
Mechanical switch for speed and reliability
Increased aiming confidence
Reduced training time and ammunition

TECHNICAL SPECIFICATIONS

OPTICAL DATA
System	Passive Red Dot Collimator Reflex Sight
Magnification	1X
Eye relief	Unlimited
Reticle, size	2 and 4 MOA *
Optical coating	Anti reflex, 1st, 2nd and 3rd Generation NVD compatible (M2 only)
ELECTRONIC DATA
Battery Type	One 3 Volt Lithium battery type 2L76 or DL1/3N
Battery Life, typical**	50,000 hours at setting 7 out of 10
Switch, dot brightness	10 settings – 4 NVD, 6 Daylight of which 1Extra Bright
MECHANICAL DATA
Material housing	Extruded, high strength aluminum, hard anodized, black, non-glare finishSight body and mount protected by a rubber cover, mat black
Surface finish	Hard anodized, matte, Dark Graphite Gray
Material lens covers	Thermoplastic elastomer, black, non-glare finish
Adjustment	1 click = 10 mm at 80 meters = 13 mm at 100 meters = ½" at 100 yds
Mounting	1 ring, 30 mm or Aimpoint QR
DIMENSIONS
Length	130 mm (5.1” )
Width/height	55 mm x 55 mm (2.2” x 2.2 ”)
Ring width	Max 30 mm (1.2")
Weight	220 grams (7.8 oz) incl. lens covers. Rubber cover 50 grams (1.7 oz)
ENVIRONMENTAL DATA
Temperature Range	-45 o C to +71o C (-50 o F to +160 o F)
Water resistance	45 meters (135 ft)
MOA (Minute Of Angle) 1 MOA = 30 mm at 100 meters = 1" at 100 yards *NEW ACET technology
Option Model
AIM-11403	CompM3, 4 MOA
AIM-11408	CompM3, 2 MOA
