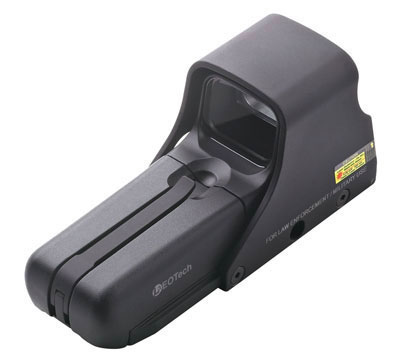

The Model 512 is fast becoming the most popular model HWS. This tactical optic is perfect for agencies that want the best in CQB speed and versatility, without the need for night vision compatibility.
Operation |
|
| Optics |
Transmission holography - parallax free |
| Magnification |
1x |
| Eye Relief |
Unlimited |
| Length/Width/Height |
5\"x1.8\"x2.25\" (131x49x60 mm) |
| Weight |
11.5 oz (326 grams) |
| Temperature |
-40 to 150 F (using AA lithiums); -20 to 140 F (all other battery choices) |
| Waterproof |
Submersible to 10 ft depth |
| Sealing |
Fogproof internal optics |
| Color/Finish |
Non reflective black with hard coat finish |
| Adjustment (per click) |
0.5 MOA (1/2\" at 100 yds) |
| Adjustment Range |
+/- 40 MOA travel |
| Mount |
Picatinny (MIL-STD-1913) rail |
| Return to Zero |
Repeatable to 1 MOA after re-mounting |
| Heads-Up-Display Window |
|
| Optical Surfaces |
Anti-glare coating |
| Window Dimensions |
1.20\" x 0.85\" (30 x 23mm) |
| Front Window Material |
1/8\" solid glass |
| Rear Window Material |
Shatter resistant laminate (3/16\" thick) |
| Field of View (100 yds) |
30 yds (28m) at a 4\" eye relief |
| Reticle Options |
65 MOA, Single 1 MOA dot, Special less lethal pattern for Sage and FN |
| Electrical |
|
| Brightness Adjustment Range |
110,000:1 brightest to lowest
No Night Vision Compatibility |
| Power Source |
2x 1.5V AA batteries (supports lithium, alkaline, or rechargeable) |
| Battery Life |
1,000 continuous hours (lithium) at nominal setting 12; 600 continuous with AA alkaline |
| Brightness Settings |
30 settings with scrolling feature (10 settings for NV use) |
| Auto Battery Check Indicator |
Flashing reticle upon start-up |
| Auto Shut-down |
At 8 hrs- programmable to 4 hrs |
