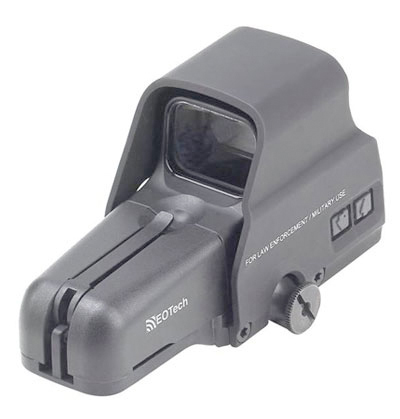

EOTech 516.A65 Holographic / Tactical Red Dot Sight
Quantity in Basket:
None
Code: EOT-516-A65
Price: $459.00
Code: EOT-516-A65
Price: $459.00
EOTech 516.A65 Holographic / Red Dot Sight
The newly offered, feature rich model 516 HWS is stealing the show this year and is fast becoming one of EOTech's best selling models.
- Buttons on left side of sight (not in back) to work specifically with magnifiers
- CR123 Lithium batteries; model with 65 MOA ring/1 MOA dot reticle
- Raised 7mm base with knurled cross bolt
- Fits to standard 1\\" Weaver dovetail/Picatinny rail
Here's why the 516.A65 is becoming so popular:
- Side button access allows the shooter to use magnifiers.
- The 516 requires less rail space than even the compact 511 N battery sights
- Rear iron sights do not get in the way of the buttons!
- CR123 batteries perform better than AA alkaline in cold conditions and offer over 1,000 hours of operation.
- Cantilevered base allows the shooter to position the battery compartment over the rifle's hand-guard, using less rail space.
- The base is 7mm higher than the 512 offering a clear sight picture, while maintaining iron sight access.
- Includes the same blazing fast 65MOA ring and 1MOA aiming dot for immediate target acquisition!
| Operation | |
|---|---|
| Optics | Transmission holography - parallax free |
| Magnification | 1x |
| Eye Relief | Unlimited |
| Length/Width/Height | 5\"x1.8\"x2.25\" (131x49x60 mm) |
| Weight | 11.9 oz (372 grams) |
| Temperature | -40 to 150 F |
| Waterproof | Submersible to 33 ft depth |
| Sealing | Fogproof internal optics |
| Color/Finish | Non reflective black with hard coat finish |
| Adjustment (per click) | 0.5 MOA (1/2\" at 100 yds) |
| Adjustment Range | +/- 40 MOA travel |
| Mount | Picatinny (MIL-STD-1913) rail |
| Return to Zero | Repeatable to 1 MOA after re-mounting |
| Heads-Up-Display Window | |
| Optical Surfaces | Anti-glare coating |
| Window Dimensions | 1.20\" x 0.85\" (30 x 23mm) |
| Front Window Material | 1/8\" solid glass |
| Rear Window Material | Shatter resistant laminate (3/16\" thick) |
| Field of View (100 yds) | 30 yds (28m) at a 4\" eye relief |
| Reticle Options | 65 MOA, Single 1 MOA dot, Special less lethal pattern for Sage and FN |
| Electrical | |
| Brightness Adjustment Range | 110,000:1 brightest to lowest |
| Night Vision Brightness Range | NA |
| Function Button Location | Left side near the rear of sight |
| Power Source | 2x 3.0V Lithium 123 batteries |
| Battery Life | 1,000 continuous hours (lithium) at nominal setting 12 |
| Brightness Settings | 30 settings with scrolling feature (10 settings for NV use) |
| Auto Battery Check Indicator | Flashing reticle upon start-up |
| Auto Shut-down | At 8 hrs- programmable to 4 hrs |
