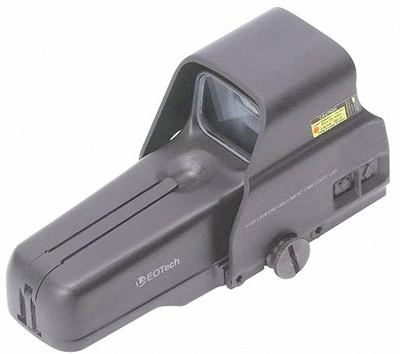

EOTech 517.A65 Holographic / Tactical Red Dot Sight
Quantity in Basket:
None
Code: EOT-517-A65
Price: $469.00
Code: EOT-517-A65
Price: $469.00
EOTech 517.A65 Holographic / Red Dot Sight
The new 517.A65 has been developed to optimize the functionality of the HWS. The buttons have been moved from the back to the left side for instant access, allowing a magnifier or a back up iron sight to fit closely to the HWS body. This new button position allows the user to operate the HWS function switches easier than ever before. Additionally, a portion of the front base has been raised to allow the sight to fit over standard hand guards found on many M-4 or M-16 style weapons
- Buttons on left side to work specifically with magnifiers
- AA Battery model (supports Lithium or Alkaline)
- Standard A65 image (65 MOA ring/1 MOA dot reticle)
- Raised 7mm base
| Operation | |
|---|---|
| Optics | Transmission holography - parallax free |
| Magnification | 1x |
| Eye Relief | Unlimited |
| Length/Width/Height | 5.70\"x2.1\"x2.8\" (133x49x71 mm) |
| Weight | |
| Temperature | -40 to 150 F (using AA lithiums); -20 to 140 F (AA Alkaline) |
| Waterproof | Submersible to 33 ft depth |
| Sealing | Fogproof internal optics |
| Color/Finish | Non reflective black with hard coat finish |
| Adjustment (per click) | 0.5 MOA (1/2\" at 100 yds) |
| Adjustment Range | +/- 40 MOA travel |
| Mount | 1\" Picatinny (MIL-STD-1913) rail |
| Return to Zero | Repeatable to 1 MOA after re-mounting |
| Heads-Up-Display Window | |
| Optical Surfaces | Anti-glare coating |
| Window Dimensions | 1.20\" x 0.85\" (30 x 23mm) |
| Front Window Material | 1/8\" solid glass |
| Rear Window Material | Shatter resistant laminate (3/16\" thick) |
| Field of View (100 yds) | 30 yds (28m) at a 4\" eye relief |
| Reticle Options | 65 MOA, Single 1 MOA dot, Special less lethal pattern for Sage and FN |
| Electrical | |
| Brightness Adjustment Range | 110,000:1 brightest to lowest |
| Function Button Location | Left side near the rear of sight |
| Power Source | 2x 1.5V AA batteries (supports lithium, alkaline, or rechargeable) |
| Battery Life | 1,000 continuous hours (lithium) at nominal setting 12; 600 continuous with AA alkaline |
| Brightness Settings | 20 settings with scrolling feature |
| Auto Battery Check Indicator | Flashing reticle upon start-up |
| Auto Shut-down | At 8 hrs- programmable to 4 hrs |
