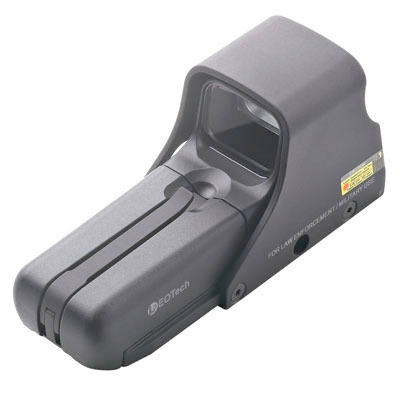

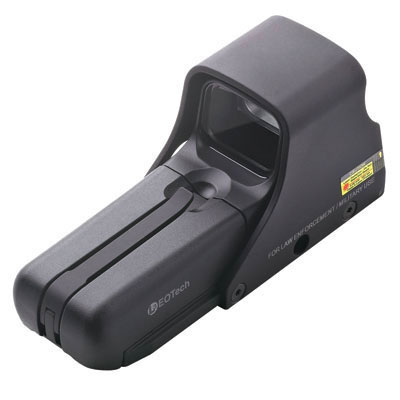

EOTech 552.A65 Holographic / Tactical Military Red Dot Sight
 |
click to enlarge |
Standardized by the DEA, ATF, and FBI SWAT, the Model 552 is by far the most popular HWS model. This NV compatible, AA battery model is the sight of choice by military units like Stryker Brigade, 10th Mountain, and 3rd Infantry. It is battle proven to withstand the abuse that any harsh environment, high powered weapon platform, or military mission can dish out.
• Compatible with Gen I-IV Night Vision Systems (Tandem Operation)
• AA Battery model (supports Lithium and Alkaline)
• 65 MOA ring/1 MOA dot reticle
• includes rugged aluminum hood assembly and knobbed, tool-less mounting bolt
• interfaces to standard 1" Weaver dovetail / Picatinny rail
Operation
• Optics: Transmission holography - 100% parallax free
• Magnification: 1x
• Eye Relief: Unlimited
• Length/Width/Height: 5"x1.8"x2.25" (131x49x60 mm)
• Weight: 11.5 oz (326 grams)
• Temperature: -40 to 150 F (using AA lithiums); -20 to 140 F (all other battery choices)
• Waterproof: Submersible to 33 ft depth
• Sealing: Fogproof internal optics
• Color/Finish: Non reflective black with hard coat finish
• Adjustment (per click): 0.5 MOA (1/2" at 100 yds)
• Adjustment Range: +/- 40 MOA travel
• Mount: 1" Picatinny (MIL-STD-1913) rail
• Return to Zero: Repeatable to 1 MOA after re-mounting
Heads-Up-Display Window
• Optical Surfaces: Anti-glare coating
• Window Dimensions: 1.20" x 0.85" (30 x 23mm)
• Front Window Material: 1/8" solid glass
• Rear Window Material: Shatter resistant laminate (3/16" thick)
• Field of View (100 yds): 30 yds (28m) at a 4" eye relief
• Standard Reticle: 65MOA circle with quadrant ticks with 1 MOA aiming dot
Electrical
• Brightness Adjustment Range: 110,000:1 brightest to lowest
• Night Vision Brightness Range: 1000:1 with NV switch engaged
• Power Source: 2x 1.5V AA batteries (supports lithium, alkaline, or rechargeable)
• Battery Life: 1,000 continuous hours (lithium) at nominal setting 12; 600 continuous with AA alkaline
• Brightness Settings: 30 settings with scrolling feature (10 settings for NV use)
• Auto Battery Check Indicator: Flashing reticle upon start-up
• Auto Shut-down: At 8 hrs- programmable to 4 hrs
This item or some of it’s components cannot be exported from the United States of America.
