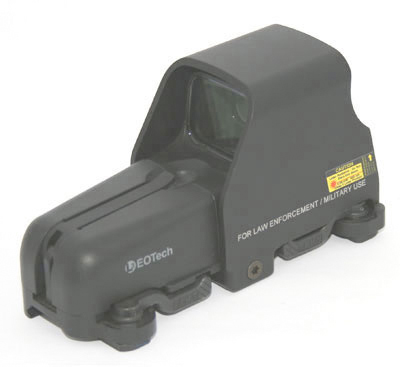

After extensive testing of various optical sights, US Special Operations Command has standardized on the HWS as its 1X weapon optic for close quarter, urban combat zones. To meet the stringent requirements set and demanded by our elite fighting forces, L-3 EOTech has developed the SU-231/PEQ (Model 553), modeled after the ever popular, battle proven HWS design.The SU-231/PEQ (Model 553) incorporates many additional features required within the SOPMOD Block 2 program.
Standardized as the weapon sight of choice by America's warrior elite, the US Special Operations Command.
| Operation |
|
| Optics |
Transmission holography - parallax free |
| Magnification |
1x |
| Eye Relief |
Unlimited |
| Length/Width/Height |
4\"x1.8\"x2.25\" (102x49x60 mm) |
| Weight |
12.3 oz (349 grams) |
| Temperature |
-40 to 150 F |
| Waterproof |
Submersible to 66 ft depth |
| Sealing |
Fogproof internal optics |
| Color/Finish |
Flat Dark Earth (non-reflective black on some small components) or Non reflective black with hard coat finish |
| Adjustment (per click) |
0.5 MOA (1/2\" at 100 yds) |
| Adjustment Range |
+/- 40 MOA travel |
| Mount |
USSOCOM requirements dictated dual quick release throw levers designed specifically for the Picatinny (MIL-STD-1913) mounting rail:
Certain commercial variants of the MIL-STD-1913 rail specification may not be compatible with the SU-231/PEQ (M553) mounting assembly.
The SU-231/PEQ (M553) base consists of (2) ARMS throw levers and is only adaptable to rails that properly accept the ARMS design. |
| Return to Zero |
Repeatable to 1 MOA after re-mounting |
| Heads-Up-Display Window |
|
| Optical Surfaces |
Anti-glare coating |
| Window Dimensions |
1.20\" x 0.85\" (30 x 23mm) |
| Front Window Material |
1/8\" solid glass |
| Rear Window Material |
Shatter resistant laminate (3/16\" thick) |
| Field of View (100 yds) |
30 yds (28m) at a 4\" eye relief |
| Reticle Options |
65 MOA, Single 1 MOA dot, Special less lethal pattern for Sage and FN |
| Electrical |
|
| Brightness Adjustment Range |
110,000:1 brightest to lowest
|
| Night Vision Brightness Range |
1000:1 with NV switch engaged
|
| Power Source |
2 x 123 lithium batteries |
| Battery Life |
1100 continuous hours at nominal setting 12 |
| Brightness Settings |
30 settings with scrolling feature (10 settings for NV use) |
| Auto Battery Check Indicator |
Flashing reticle upon start-up |
| Auto Shut-down |
At 8 hrs- programmable to 4 hrs |
