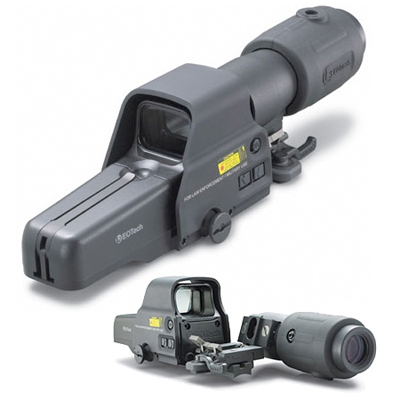

EOTech 557.AR223 with G23 FTS
EOTECH 557.AR223 Holographic / Red Dot Sight - Night Vision Compatible
The new 557.AR223 has been developed to optimize the functionality of the HWS. The buttons have been moved from the back to the left side for instant access, allowing a magnifier, night vision, or a back up iron sight to fit closely to the HWS body. This new button position allows the user to operate the HWS function switches easier than ever before. Additionally, a portion of the front base has been raised to allow the sight to fit over standard hand guards found on many M-4 or M-16 style weapons.
The 557.AR223 is configured with a new ballistic matching reticle image for the M4 carbine. The battle tested circle/dot reticle will be offered along with a series of 1 MOA aiming dots that are vertically aligned and calibrated specifically for the ballistic drop of .223 caliber ammunition. The reticle provides 4 aiming dots for target distances of 0-300m, 400m, 500m, and 600m.
Buttons on left side to work specifically with NV or magnifiers
• AA Battery model (supports Lithium or Alkaline)
• Ballistic reticle specific to .223 caliber munitions
• Compatible with Gen I-IV Night Vision Systems (tandem operation)
• Raised 7mm base
| Operation |
|
| Optics |
Transmission holography - parallax free |
| Magnification |
1x |
| Eye Relief |
Unlimited |
| Length/Width/Height |
5.70\\"x2.1\\"x2.8\\" (133x49x71 mm) |
| Weight |
TBD |
| Temperature |
-40 to 150 F (using AA lithiums); -20 to 140 F (AA Alkaline) |
| Waterproof |
Submersible to 33 ft depth |
| Sealing |
Fogproof internal optics |
| Color/Finish |
Non reflective black with hard coat finish |
| Adjustment (per click) |
0.5 MOA (1/2\\" at 100 yds) |
| Adjustment Range |
+/- 40 MOA travel |
| Mount |
1\\" Picatinny (MIL-STD-1913) rail |
| Return to Zero |
Repeatable to 1 MOA after re-mounting |
| Heads-Up-Display Window |
|
| Optical Surfaces |
Anti-glare coating |
| Window Dimensions |
1.20\\" x 0.85\\" (30 x 23mm) |
| Front Window Material |
1/8\\" solid glass |
| Rear Window Material |
Shatter resistant laminate (3/16\\" thick) |
| Field of View (100 yds) |
30 yds (28m) at a 4\\" eye relief |
| Reticle Options |
65 MOA, Single 1 MOA dot, Special less lethal pattern for Sage and FN |
| Electrical |
|
| Brightness Adjustment Range |
110,000:1 brightest to lowest
|
| Night Vision Brightness Range |
1000:1 with NV switch engaged
|
| Function Button Location |
Left side near the rear of sight |
| Power Source |
2x 1.5V AA batteries (supports lithium, alkaline, or rechargeable) |
| Battery Life |
1,000 continuous hours (lithium) at nominal setting 12; 600 continuous with AA alkaline |
| Brightness Settings |
30 settings with scrolling feature (10 settings for NV use) |
| Auto Battery Check Indicator |
Flashing reticle upon start-up |
| Auto Shut-down |
At 8 hrs- programmable to 4 hrs |
EOTech G23 FTS - 3X Magnifier
 |
click to enlarge |
The 3X magnifier is an affordable magnified solution that will transition a fielded HWS into a lethal medium range optic. Superior light transmission and a large field of view helps this magnifier put the competition to shame. This rugged, streamlined optic offers split-second transitioning from CQB to medium range targeting.
This is the 2nd Generation of L3 EOTech magnifiers. It offers a half inch more eye relief, positions the windage and elevation adjustments inside of the optic rather than in the mount, less moving parts in the mount which makes the mount even more stable, and has a quick release thow lever on the bottom of the mount which allows the quick removal of both the optic and the mount. This magnifier aligns perfectly with standard height sights and comes with a 7mm riser to accomadate the 7mm raised sights.
3x magnifier with Flip-To-Side mount and quick detach. Works with all existing HWS units.
Specifications |
|
| Magnifcation Fixed |
3.25X |
| Eye Relief |
1.97" (50mm) |
| Length |
4.4" (113mm) |
| Weight |
11.9oz (372 grams) |
| Temperature |
-40 to 160 F |
| Waterproof |
33ft |
| Sealing |
Fogproof Internal Optics |
| Color/Finish |
Black |
| Mount |
MIL-STD-1913 rail |
| |
|
Mount |
Retrofits to all HWS models
Included 7mm riser for raised bases |
| Length |
1.6" (40.6mm) |
| Height |
1.64" (41.65mm) Clears common low profile flip up rear iron sights |
| Weight |
4.5oz (128 grams) |
| Color/Finish |
Non reflective black with hard coat finish |
| Flip Orientation |
Ambidextrous mount to allow left or right flip |
| Rail Interface |
Fixed Picatinny with single mounting bolt. |
| Magnifier Interface |
Retained by ARMS� throw |
| Optical Axis Adjustment |
Horizontal and vertical adjustments within mount |
