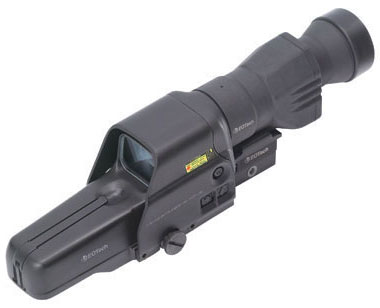

EOTech 557.4XFXD - (HWS) Red Dot Sight with 4x magnifier /fixed base and quick detach

EOTech Model 557.4XFXD - (HWS) Red Dot Sight with 4x magnifier /fixed base and quick detach

L-3 EOTech introduces the latest in our line of innovative, performance driven products designed to aid the modern day warfighter - the MPO (MultiPurpose Optic). The MPO provides a complete optical system that solves the need for medium range precision targeting and target identification, as well as rapid transition to close quarters battle (CQB) engagements where speed and peripheral vision are essential.

The MPO is configured with a new ballistic matching reticle image for the M4 carbine. The reticle provides 4 aiming dots for target distances of 0-300m, 400m, 500m, and 600m. When viewed without magnification, the 65 MOA circle and fine center 1 MOA aiming dot are used, ensuring precision accuracy. Only through the unique optical properties of holography, the aiming dots remain 1MOA in size, regardless of magnification (yet your target has increased in size by nearly 4x)! Precise, medium range targeting (out to 600m) can now be achieved.

Field of view is optimized by integrating high quality prisms that maintain the rectangular shaped sight picture of the HWS, and since the illuminated reticle image is imbedded within the HWS, there is no risk of losing zero when the magnifier element is taken off or re-attached. Additionally,the base of the 557 HWS has been modified to reduce the amount of rail space required to effectively mount the system, making this ideal for the M4/AR15 flat-top platform.

For the infantryman, target ranges vary in ever-changing battlefield conditions. The MPO provides a solution for engaging threats in CQB situations, then quickly transitioning to a 500m targeting or surveillance situation, and then quickly back to a 25m room clearing exercise. Instant transition is achieved through a quick Flip-to-Side (FTS) mount or optional fixed mount (FXD) that offers a simple, quick disconnect feature to remove the 4X magnifier. This durable, night vision compatible system offers wide field optical performance with superior light transmission for visibility in extreme low light conditions.

• Buttons on left side to work specifically with NV or magnifiers
• AA Battery model (supports Lithium or Alkaline)
• Ballistic reticle specific to .223 caliber munitions
• Compatible with Gen I-IV Night Vision Systems (tandem operation)
• Raised 7mm base

Operation

• Optics: Transmission holography - 100% parallax free
• Magnification: 1x
• Eye Relief: Unlimited
• Length/Width/Height: 5.70"x2.1"x2.8" (133x49x71 mm)
• Weight: TBD
• Temperature: -40 to 150 F (using AA lithiums); -20 to 140 F (AA Alkaline)
• Waterproof: Submersible to 33 ft depth
• Sealing: Fogproof internal optics
• Color/Finish: Non reflective black with hard coat finish
• Adjustment (per click): 0.5 MOA (1/2" at 100 yds)
• Adjustment Range: +/- 40 MOA travel
• Mount: 1" Picatinny (MIL-STD-1913) rail
• Return to Zero: Repeatable to 1 MOA after re-mounting

Heads-Up-Display Window

• Optical Surfaces: Anti-glare coating
• Window Dimensions: 1.20" x 0.85" (30 x 23mm)
• Front Window Material: 1/8" solid glass
• Rear Window Material: Shatter resistant laminate (3/16" thick)
• Field of View (100 yds): 30 yds (28m) at a 4" eye relief
• Standard Reticle: AR223 BDC reticle with additional drop point dots for 400, 500, and 600 meters

Electrical

• Brightness Adjustment Range: 110,000:1 brightest to lowest
• Night Vision Brightness Range: 1000:1 with NV switch engaged
• Function Button Location: Left side near the rear of sight
• Power Source: 2x 1.5V AA batteries (supports lithium, alkaline, or rechargeable)
• Battery Life: 1,000 continuous hours (lithium) at nominal setting 12; 600 continuous with AA alkaline
• Brightness Settings: 30 settings with scrolling feature (10 settings for NV use)
• Auto Battery Check Indicator: Flashing reticle upon start-up
• Auto Shut-down: At 8 hrs- programmable to 4 hrs

Magnifier

• Magnification Fixed: 3.75X
• Eye Relief: 1.65" (42mm)
• Length: 4.6" (117mm)
• Weight: 12oz (340 grams)
• Temperature: -40 to 160 F
• Waterproof: 33 ft.
• Sealing: Fogproof internal optics
• Color/Finish: Non reflective black with hard coat finish
• Mount: Integrated dovetail for use with quick detach mount
• Retrofits to all HWS models

Mount

• Length: 1.6" (40.6mm)
• Height: 1.64" (41.65mm) Clears common low profile flip up rear iron sights
• Weight: 4.0 oz (113 grams)
• Color/Finish: Non reflective black with hard coat finish
• Flip Orientation: Non Flip, ambidextrous mount
• Rail Interface: Fixed Picatinny with single mounting bolt.
• Magnifier Interface: Retained by ARMS® throw
• Optical Axis Adjustment: Horizontal and vertical adjustments within mount
• Works with either 3x or 4x HWS magnifier

This item or some of it’s components cannot be exported from the United States of America.
