EOTech XPS3 Holographic / Red Dot Sight
Quantity in Basket:
None
Code: EOT-XPS3
Price: $589.00
Code: EOT-XPS3
Price: $589.00

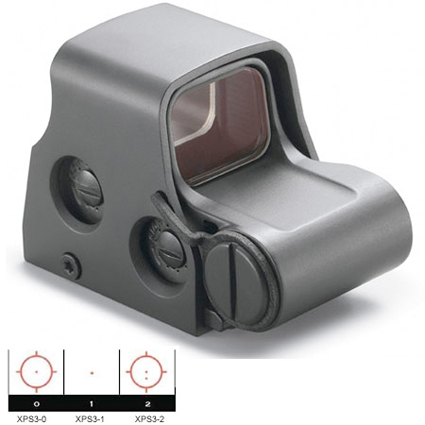

EOTech XPS3 Holographic / Red Dot Sight
Shortest model sight yet! This sight is smaller than the former N-cell battery sight (511/551) and runs on a single 123 battery. It also has a longer battery life than the N-cell style sights. Smaller,lighter and always fast with three reticle options. With the new single battery configuration, the XPS allows more rail space than ever, leaving more room for rear iron sights or NV mount.
- Single transverse 123 battery to reduce sight length
- Shortened base only requires at most 2 3/4 inch of rail space compared to the 4 inch N battery sights
- Battery cap and latch are eliminated and replaced with a simple O-ring, tethered cap; better sealing is achieved
- Battery compartment is now separated from the base to allow it to hover over the delta ring of the rifle
- Average battery life at brightness level 12 is roughly 500-600 hours, 3X battery life of N cell sights
- Three reticle options: 0- 65MOA circle with 1 MOA aiming dot, 1-single 1MOA aiming dot, 2-65MOA circle with two 1MOA aiming dots
- Available in Night Vision (XPS3) and non- Night Vision (XPS2) versions. The numbers reflect the number of the buttons on the back of the sight.
#EOT-XPS3-0 EOTech XPS3-0: 65 MOA ring & 1 MOA Dot
#EOT-XPS3-1 EOTech XPS3-1: 1 MOA Dot
#EOT-XPS3-2 EOTech XPS3-2: 65 MOA ring & 1 MOA Dot
Operation |
|
|---|---|
| Optics | Transmission holography - parallax free |
| Magnification | 1x |
| Eye Relief | Unlimited |
| Length/Width/Height | 3.75"x2.4"x2.4" (95.25X60.96x60.96) |
| Weight | 8.8 oz (250 grams) |
| Temperature | -40 to 150 F |
| Waterproof | Submersible to 10 ft depth |
| Sealing | Fogproof internal optics |
| Color/Finish | Non reflective black with hard coat finish |
| Adjustment (per click) | 0.5 MOA (1/2\\" at 100 yds) |
| Adjustment Range | +/- 40 MOA travel |
| Mount | Weaver or Picatinny (MIL-STD-1913) rail |
| Return to Zero | Repeatable to 2 MOA after re-mounting |
| Night Vision Comatibility | yes, 10 setting (generation i-iii+) |
| Heads-Up-Display Window | |
| Optical Surfaces | Anti-glare coating |
| Window Dimensions | 1.20\\" x 0.85\\" (30 x 23mm) |
| Front Window Material | 1/8\\" solid glass |
| Rear Window Material | Shatter resistant laminate (3/16\\" thick) |
| Field of View (100 yds) | 30 yds (28m) at a 4\\" eye relief |
| Reticle Options | 65 MOA, Single 1 MOA dot, Special less lethal pattern for Sage and FN |
| Electrical | |
| Brightness Adjustment Range | 1280:1 with NV switch engaged |
| Power Source | (1) 123 lithium battery |
| Battery Life | 600 continuous hours at nominal setting 12 |
| Brightness Settings | 30 settings with scrolling feature (10 settings for NV use) |
| Auto Battery Check Indicator | Flashing reticle upon start-up |
| Auto Shut-down | At 8 hrs- programmable to 4 hrs |
