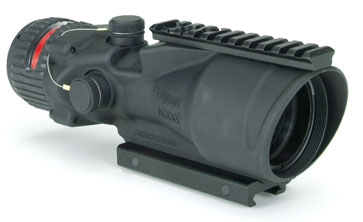

Trijicon ACOG 6x48 Scope with Red Chevron Reticle and Accessory M1913 Rail
The military’s need for a magnified, self-luminous tactical sight
that enhances target identification and increases hit probability on
extended-range shots has given rise to the new Trijicon ACOG 6x48.
Powered by Trijicon’s patented fiber optics and tritium-based
technology, the new TA648MGO ACOG reticle features a red chevron
aiming point. It also incorporates a bullet drop compensator (BDC)
with additional aiming points estimated for trajectory of the 5.56mm
M855 out to 800 meters. To further improve target acquisition and
hit potential, the new ACOG 6x48 incorporates Trijicon’s Bindon
Aiming Concept (BAC) – a revolutionary both-eyes-open method of
aiming. Like other members of the Trijicon ACOG line, the new
ACOG 6x48 is battery free and waterproof to 328 feet.
This model of the 6x48 ACOG features an M1913 Military rail for
mounting of additional Trijicon products such as the RedDot and
Reflex.
The TA648MGO also includes:
- 1 Picatinny Rail Adapter (TA75)
- 1 Large sized Pelican Case (TA89)
- 1 LENSPEN (LENSPEN)
- 1 Trijicon Logo Sticker (PR15)
- 1 Manual
- 1 Warranty Card
Specifications:
Magnification: 6
Objective Size: 48
Bullet Drop Compensator: Yes
Length (in): 9.00
Weight (oz): 39.30
Illumination source: Fiber Optics & Tritium
Reticle Pattern: Chevron
Day Reticle Color: Red
Night Reticle Color: Red
Calibration: .223
Bindon Aiming Concept: Y
Eye Relief (in): 2.70
Exit Pupil (mm): 8.00
Field of View (°): 3.30
Field of View @ 100yrds (ft): 17.00
Adjustment @ 100 yds (clicks/in): 4
Tube Size: N/A
Mount: TA75
Mount On/Comes With: TA75
Housing Material: Forged Aluminum
Special Order: No
